Direct OEM/ODM industrial and automotive protective solutions engineered for high impact resistance, corrosion longevity, and precise spatial alignment across global export markets.
In modern industrial procurement, the term "Brush Guard" spans a sophisticated spectrum of protective hardware engineering. From heavy-duty automotive front-end bumper protection bars engineered to absorb kinetic energy during animal strikes, to high-precision nylon safety shields on small-engine brush cutters, structural elevator dust-sealing brushes, and micro-molded robotic vacuum roller enclosures — selecting the right manufacturing partner demands rigorous evaluation of raw material metallurgy, polymer dynamics, dynamic stress tolerance, and surface finishing technologies.
This industry whitepaper evaluates the Top 10 Brush Guard Factories & Suppliers across global manufacturing hubs. Designed for OEM procurement managers, automotive aftermarket buyers, industrial hardware distributors, and home appliance brand managers, this report dissects key engineering standards, cost structures, tooling scalability, and international compliance specifications.
Understanding material behavior under thermal, mechanical, and chemical stress is critical to preventing premature field failure and costly warranty claims. Below is an engineering overview of materials utilized by premier global brush guard manufacturers:
| Application Sector | Primary Raw Material | Key Tensile / Impact Standard | Surface Treatment / Coating | Typical Target Lifecycle |
|---|---|---|---|---|
| Automotive & Commercial Truck | 304 Stainless Steel / Carbon Steel Tubing | Yield Strength > 310 MPa | Electro-Polishing / Dual E-Coat + Powder | 10+ Years / 150,000 Miles |
| Off-Road 4x4 Nudge Bars | Q235 Cold-Rolled Steel Seamless Pipe | Impact Absorption up to 15 kN | Textured UV-Polyester Powder Coat | 7–10 Years Extreme Duty |
| Agricultural & Lawn Power Tools | High-Impact PA66 Nylon + GF30 | Charpy Impact > 12 kJ/m² | Color-Pigmented Anti-UV Coating | 500+ Operational Hours |
| Consumer & Smart Home Robotics | Flame Retardant ABS / PC Composite | UL94 V-0 Flammability Rated | Micro Polish / Molded Grain | 3,000+ Household Hours |
| Escalator & Industrial Building Safety | 6063-T5 Extruded Aluminum + Nylon 6 | EN115 Safety Deflection Code | Anodized Clear/Black (15µm) | 15 Years High Foot-Traffic |
Our global growth analytics team evaluated over 120 global manufacturing hubs based on five core pillars: Manufacturing Precision, Material Traceability, OEM Customization, Quality Certifications, and Global Supply Chain Agility.
Leading factories utilize 3D CNC laser tube cutters, 5-axis hydraulic tube benders, and robotic welding cells. For plastic components, state-of-the-art multi-cavity injection molds guarantee tight dimensional tolerances (within ±0.05mm).
Automotive and architectural brush guards require multi-stage surface treatments. Top-tier suppliers feature automated electro-deposition (E-coating) coupled with outdoor-grade powder coating passing 480-hour salt spray testing.
High-performing OEMs hold ISO9001:2015 and IATF 16949 quality system accreditations. Automotive products align with DOT/FMVSS standards, while escalator brush guards adhere strictly to EN115 international safety codes.
Elite manufacturers provide comprehensive private labeling services—including custom packaging, branded mounting hardware, tailored laser engraving, and custom master carton designs optimized for 40HQ container shipping.
For agricultural grass safety guards and home appliance brush covers, top-tier factories utilize custom composite formulations containing anti-UV additives, anti-static agents, and micro-fiber reinforcement to eliminate brittleness.
Top global suppliers maintain strategic raw material stockpiles (coiled steel, aluminum extrusions, raw resin pellets), enabling fast production lead times of 20–30 days for standard orders and 35 days for custom tooling.
As corporate sustainability goals and technological advancements reshape global procurement strategies, the design and manufacturing of brush guards are undergoing structural evolutions. Procurement officers must align their procurement criteria with the following major trends:
In the automotive sector, electric vehicles (EVs) demand stringent weight optimization to preserve battery range. Modern front brush guards and nudge bars are shifting from heavy, low-carbon steel to ultra-high-strength hot-stamped steel and aircraft-grade T-6 heat-treated aluminum alloys. These materials deliver equivalent kinetic impact absorption with up to 40% reduction in tare weight.
Modern commercial trucks and off-road 4x4 vehicles are equipped with Advanced Driver Assistance Systems (ADAS), including radar sensors, LiDAR, and front parking cameras. Premier brush guard manufacturers now engineer "ADAS-Compliant" protection bars featuring integrated mounting apertures and radar-transparent composite mesh panels, ensuring uninhibited sensor calibration.
Environmental regulations in Europe (RoHS/REACH) and North America have forced a transition away from traditional chrome plating processes toward eco-friendly trivalent chrome finishes and zero-VOC powder coating technologies. In consumer robotics and power tools, bio-based polyamides and 100% recyclable post-consumer resins (PCR) are increasingly mandated by global brand managers.
We operate an integrated manufacturing campus specializing in heavy metal fabrication, precision tube bending, multi-layer surface treatment, and plastic injection molding. We supply global brands, tier-1 distributors, and OEM buyers with guaranteed quality and competitive direct-factory pricing.
Direct technical and operational answers to common procurement questions from global buyers and fleet managers.

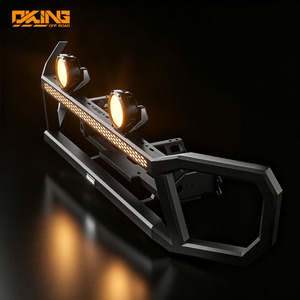

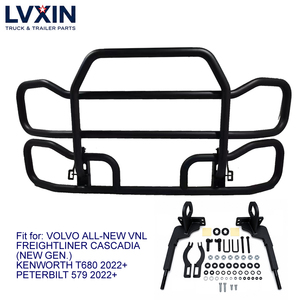

Heavy-duty truck deer guards are engineered for commercial transport (Class 7-8 trucks) to protect critical cooling systems (radiator, intercooler) against high-speed animal impacts. They feature full-coverage high-diameter steel/aluminum tubing (2.5" to 3" OD). Nudge bars are lighter, frame-mounted front accessories designed for light trucks and SUVs, offering lower-front bumper protection and mounting points for auxiliary lighting.
Standard plastic guards become brittle at low temperatures. Premium OEM safety guards utilize high-grade Polyamide 66 (PA66) compounded with impact modifiers and 15–30% short glass fibers. This matrix maintains high Izod notched impact strength across extreme temperature ranges (-20°C to 80°C) and prevents catastrophic shattering under high-RPM stone impacts.
For stainless steel guards, 304 or 316 grade stainless with an electro-polished finish offers optimal passivated corrosion resistance. For carbon steel products, a two-stage surface treatment consisting of an electro-deposited zinc-phosphate base coat (E-coat) followed by an architectural-grade outdoor polyester powder coat delivers superior resistance against salt spray (ASTM B117 > 480–1000 hours).
Yes. Our engineering team works directly with client CAD files (STEP, IGES, SolidWorks). For metal fabrication, we produce prototypes via 3D laser cutting and soft tooling within 7–10 days. For plastic injection components, our in-house toolroom produces production-ready multi-cavity hardened steel molds (P20/718) within 25–35 days.
For large automotive metal guards, standard MOQ starts at 50–100 units per model, with master packaging optimized for 40HQ container utilization (typically 200–400 sets depending on knock-down vs. fully-welded structure). For smaller plastic mower guards or robotic brush covers, standard MOQ starts at 1,000 units with high-density nested carton packaging.

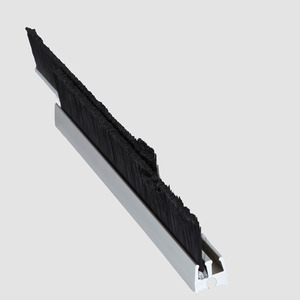

EN115 requires escalator skirt deflectors to reduce the risk of footwear entrapment between the step and the skirt panel. Compliant brush guards feature rigid anodized aluminum mounting channels combined with dual-row flame-retardant nylon bristles that maintain specified deflection stiffness under lateral load while eliminating static discharge.
Contact our engineering sales department today for technical consultations, OEM drawings, factory audit documentation, and competitive B2B quotes.
